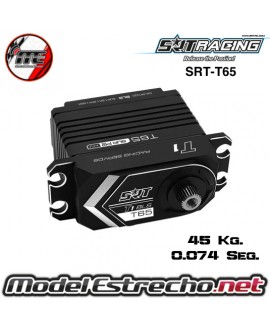

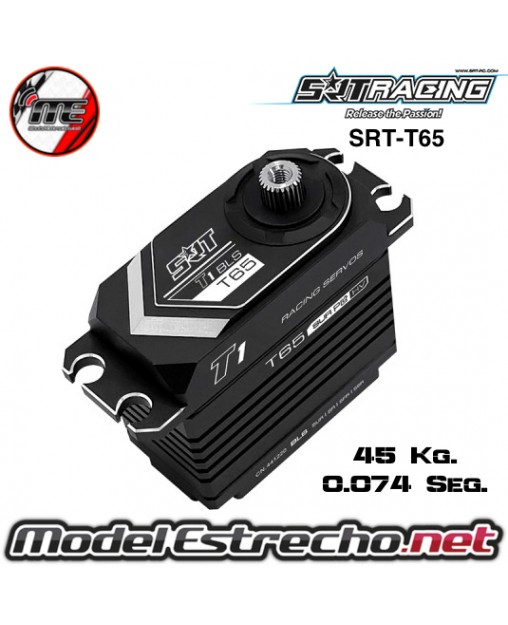

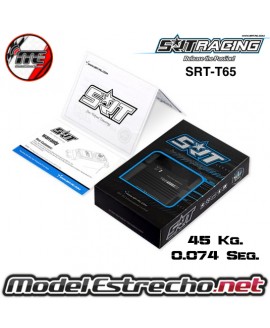

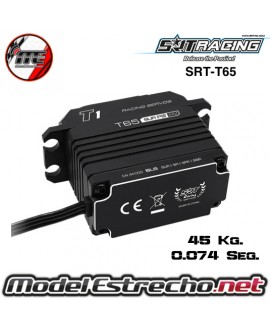

SERVO SRT T65 HV BRUSHLESS CAJA METALICA 45Kg. 0.074Seg.

SERVO SRT T65 HV BRUSHLESS CAJA METALICA 45Kg. 0.074Seg.

Ref: SRT-T65

PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
Control system: pulse width control
Working frequence: 1520μs / 330hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to + 60 degree
Operating speed (6.0v): 0.092 sec/60 degrees at no load
Operating speed (7.4v): 0.074 sec/60 degrees at no load
Operating speed (8.4v): 0.065 sec/60 degrees at no load
Stall torque (6.0v): 39.0kg.cm (541.6 oz/in)
Stall torque (7.4v): 45.0kg.cm (625.0 oz/in)
Stall torque (8.4v): 55.0kg.cm (763.8 oz/in)
Potentiometer drive: direct drive
Dimensions: 40.7x20.5x39.0 mm /1.60x0.81x1.54 in
Weight: 83.0g (2.93 oz)Connector wire length: jr 300 mm
