SERVO POWER HD S15 LOW PROFILE HV CNC BRUSHLESS 16.5Kg./0.05Sec
119,95 €
Tax included
119.95
24 Horas

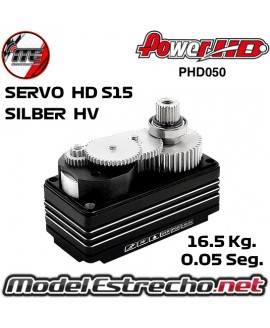

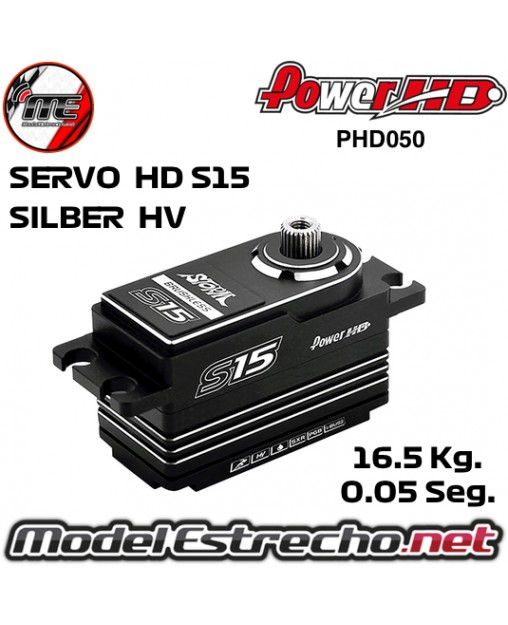

SERVO POWER HD S15 LOW PROFILE HV CNC BRUSHLESS 16.5Kg./0.05Sec
Ref: PHD050
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
SERVO POWER HD S15 LOW PROFILE HV CNC BRUSHLESS 16.5Kg./0.05Sec
Ref: PHD050
Product information "PowerHD S15 Rot HV CNC Brushless Digital Servo 16.5KG/0.05sec@8.4V"
Torque(6.0V): 11.5 kg-cm (159.7 oz/in)
Torque(7.4V): 15.0 kg-cm (208.3 oz/in)
Torque(8.4V): 16.5 kg-cm (229.1 oz/in)
Speed: 0.072 sec (6.0V) ¦ 0.060 sec (7.4V) ¦
Speed: 0.050 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 52.0 g (1.83 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: Titanium & Steel
Operating Temperature: -20~60°C
Working frequency: 1520µs / 333hz
Size: 41.0 x 20.0 x 26.0 mm ( 1.61 x 0.79 x 1.02 in)
PHD050
1 Item
SERVO POWER HD S15 LOW PROFILE HV CNC BRUSHLESS 16.5Kg./0.05Sec
Ref: PHD050
