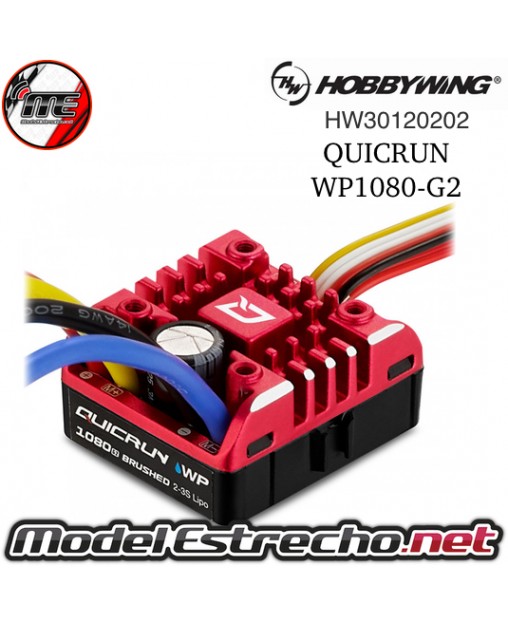

HOBBYWING QUICRUN 1080-G2 WP 80A. CRAWLER BRUSHED ESC 1:8 & 1:10

Ref: HW30120202

Specifications

Product Name QuicRun WP Crawler Brushed

Product Number 30112750

Type Scale 1/8th & 1/10th

Brushed Waterproof

Specifications

Cont./Peak Current 80A/400A

Input Voltage 2-3S Lipo/5-9 Cell NiMH

BEC Output Switch  Mode: 6V/7.4V@3A

Wires & Connectors Input Wires

Red-14AWG-200mm*1 / Black-14AWG-200mm*1

Output Wires

Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1

Input Connectors XT60 Connectors

Output Connectors No

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via SET Button on ESC

Supported LED Program Box

Supported LCD Program Box

Not Supported WiFi Module

Not Supported Program Port

Separate Program Port

Firmware Upgrade

Not Supported

Size & Weight

Size 36.2x31.6x17.0mm

Weight 58.5g (w/Wires)

Applications

Motors Brushed Motor (540/550/775 size motors)

Vehicles 1/8th,1/10th Rock Crawlers

KV Rating/T Count

Brushed Motor Limit with 2S LiPo/6S NiMH: ≥10T or RPM<30000@7.4V
Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<20000@7.4V
